SITRANS FS230 (Gas)
Process Instrumentation
Clamp-on Ultrasonic Flow Meter
SITRANS FS230 clamp-on non-intrusive ultrasonic flow meter features best-in-class performance and user-friendly operation equipped to handle natural, specialty, process gas and liquid flow applications.
SITRANS FS230 Catalog
specifications
Webinar
Taking liquid and gas hydrocarbon flow measurement to a new level of perfomance
Martin Dingman of Siemens Industry, Inc. discusses the new FS230 clamp-on ultrasonic meters for liquid and gas hydrocarbon flow measurement. Topics covered are theory of operation, innovative features and benefits, liquid and gas hydrocarbon applications, installation tips and tricks, and selection criteria.
Benefits
One of the world’s first digital ultrasonic flow systems, the FS230 features among others:
- Market-leading accuracy and repeatability – Accuracy of 0.5 to 1.0% of flow rate for all liquids/pipe sizes and repeatability of 0.25% according to ISO 11631
- Available internal AGA 9 gas tables - Simplifying correction for temperature and pressure variations in gas flow
- Industry-leading 100 Hz data update rate – Detects even the smallest variations in flow 100 times a second
- Three resettable totalizers - Allowing simultaneous totalizing for daily, monthly and annual lease production
- Easy to read and use graphic Human Machine Interface (HMI) – Offers intuitive menu-driven navigation as well as step-by-step setup and troubleshooting wizards, with up to 6 user-configurable views on display at a time
- SensorFlash® internal, non-volatile data storage – Stores settings, calibration/ datalogger information and certificates for easy servicing and increased uptime
- Versatile sensors – Requires little to no maintenance and can be installed on pipes as small as 0.5 inches and as large as 394 inches (33ft) without issue

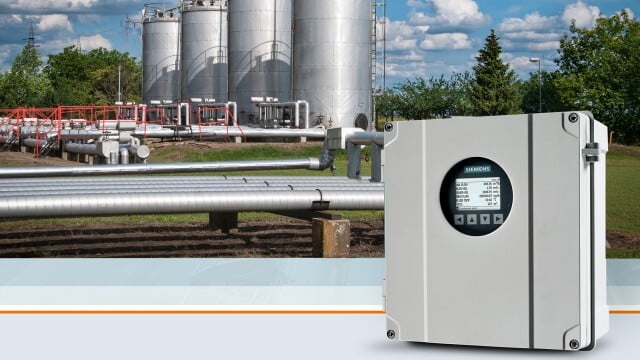

SITRANS FST030 wall-mount transmitter
| Configuration | Wall mount enclosure, 1- or 2-path |
|---|---|
| Communication | HART 7.5 or Modbus; compatible with SIMATIC PDM |
| Materials | Aluminum |
| Enclosure | IP66/67, NEMA 4X rating |
| I/O | Up to 6 channels combining analog, relay or digital outputs and binary input + RTD |
| Display | Full graphical display, 240 x 160 pixels |
| Power Supply | 20 to 27 V DC, 100 to 240 V AC, 47 ... 63 Hz (universal power supply) |
| Approvals | FM, UL, ULc, CE, ATEX, IECEx |
SITRANS FSS200 Clamp-on ultrasonic sensors
| Media | Conductive and non-conductive liquids |
|---|---|
| Pipe Sizes | 12.7 mm to 10 m (0.5" to 394") |
| Sensor Materials | WideBeam®: Size A/B: Polyetherimide, stainless steel, aluminum (optional) Size C/D: Polyetherimide, stainless steel Size A/B: Polyetherimide, stainless steel, aluminum (optional) Size C/D: Polyetherimide, stainless steel High-Temperature: Stainless steel |
| Temperature range | WideBeam®: -40 to 120 °C (-40 to 250 °F) Universal: -40 to 120 °C (-40 to 250 °F) High-Temperature: -40 to 230 °C (-40 to 450 °F) |
| Pipe Material | WideBeam®: Steel and carbon steel Universal: Most non-steel High-Temperature: Steel and non-steel |
| Approvals | FM, ATEX and IECEX (Zone 0, 1 and 2) |
